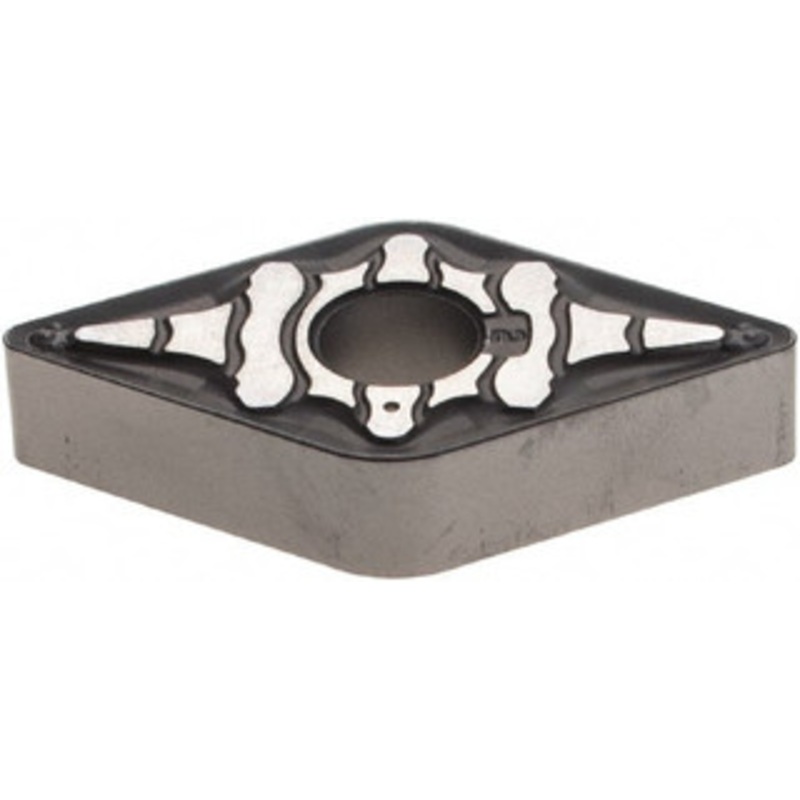

Walter Tools DNMG150408MP5 WPP10S Carbide Turning Insert 1/2 Inscribed Circle, 0.8mm Corner Radius, 0.1874 Thick, Diamond 6178406 – 52545381

Walter Tools DNMG150408MP5 WPP10S Carbide Turning Insert 1/2 Inscribed Circle, 0.8mm Corner Radius, 0.1874 Thick, Diamond 6178406 – 52545381

  • $18.62
  • $31.03
Availability: In Stock

Walter Tools DNMG150408MP5 WPP10S Carbide Turning Insert 1/2" Inscribed Circle, 0.8mm Corner Radius, 0.1874" Thick, DiamondManufacturer Part #: 6178406S/N: 52545381UNSPSC: 23242105(Minimum Order Quantity=1, Package Quantity=1)Specifications:Relief Angle0In

Category:
Share:
payment
Description Reviews (0)

Walter Tools DNMG150408MP5 WPP10S Carbide Turning Insert 1/2″ Inscribed Circle, 0.8mm Corner Radius, 0.1874″ Thick, Diamond

Manufacturer Part #: 6178406

S/N: 52545381

UNSPSC: 23242105

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Relief Angle 0 Insert Style DNMG Corner Radius (mm) 0.80 Corner Radius (Inch) 1/32 Corner Radius (Decimal Inch) 0.0315 Included Angle 55degree Manufacturer Grade WPP10S Coating/Finish TiCN, Al2O3, TiN Wiper Edge No Insert Hand Neutral Insert Thickness (Inch) 3/16 Insert Thickness (Decimal Inch) 0.1875 Series DNMG-MP5 Inscribed Circle (Inch) 1/2 Inscribed Circle (Decimal Inch) 0.5000 Insert Material Carbide Insert Shape Diamond 55 Number Of Cutting Edges 4 Insert Shape Code D Hole Diameter (Decimal Inch) 0.2030 Maximum Depth of Cut (mm) 5.00 Maximum Depth of Cut (Decimal Inch) 0.2000 Insert Holding Method Clamp, Pin Width (Inch) 1/2in Clearance Code N Tolerance Code M Coating Process CVD Length Range (Decimal Inch) 0.6000 – 0.6500 Rake Negative Insert Length (Decimal Inch) 0.6104 Primary Workpiece Material Steel Primary Workpiece Material Code P Secondary Workpiece Material Cast Iron Secondary Workpiece Material Code K Iso Code DNMG150408-MP5 WPP10S Standards ANSI, ISO Manufacturers Catalog Number 6178406 Material Grade P10, K20 Proprietary Coating Designation WPP10S Lead Angle 55degree Coating Classification CVD Chip Breaker MP5 Rake Angle 15 Cutting Edge Style Chamfered & Honed Industry Standard Number DNMG432-MP5 WPP10S Width (Decimal Inch – 4 Decimals) 0.5000in Multi-Use Tool Yes Full Radius No Multi-Use Application Turning, Facing, Boring, Back Turning UNSPSC Code 23242105 Insert Size Code 432
