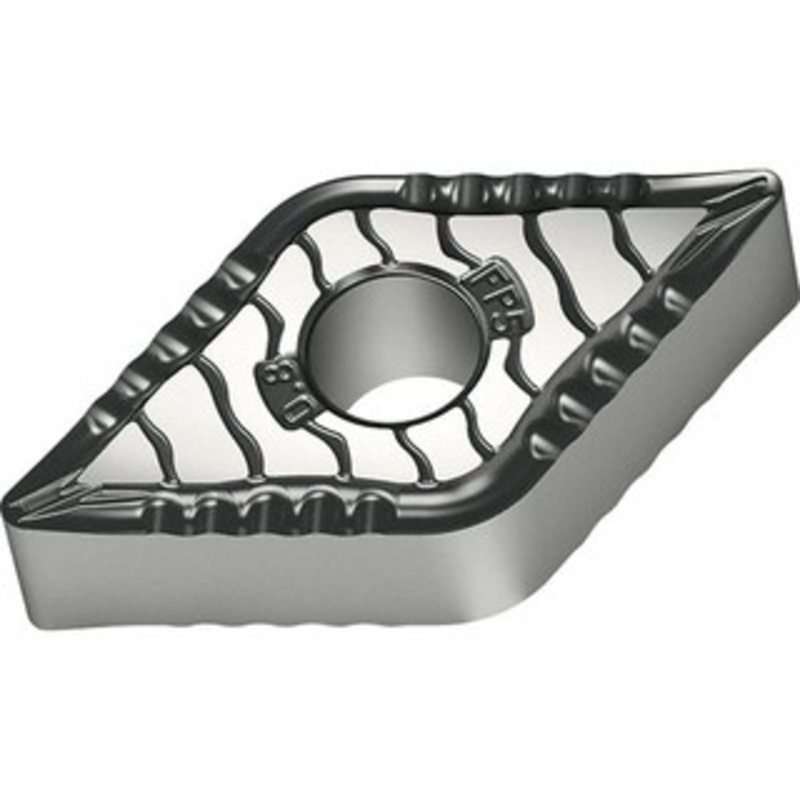

Walter Tools DNMG331-FP5 WPP10S Carbide Turning Insert TiCN/Al2O3/TiN Finish, 11.61mm Long, 3/8″ Inscribed Circle, 1/64″ Corner Radius, 55 Diamond, Series Tiger-tec
Manufacturer Part #: 6059974
S/N: 36324192
UNSPSC: 23242105
(Minimum Order Quantity=10, Package Quantity=1)
(Please order in multiples of 10)
Specifications:
| Relief Angle |
0 |
| Insert Style |
DNMG |
| Corner Radius (Inch) |
1/64 |
| Corner Radius (Decimal Inch) |
0.0157 |
| Included Angle |
55degree |
| Manufacturer Grade |
WPP10S |
| Coating/Finish |
TiCN, Al2O3, TiN |
| Wiper Edge |
No |
| Insert Hand |
Neutral |
| Insert Thickness (Inch) |
3/16 |
| Insert Thickness (Decimal Inch) |
0.1875 |
| Series |
DNMG-FP5 |
| Inscribed Circle (Inch) |
3/8 |
| Inscribed Circle (Decimal Inch) |
0.3750 |
| Insert Material |
Carbide |
| Insert Shape |
Diamond 55 |
| Number Of Cutting Edges |
4 |
| Insert Shape Code |
D |
| Hole Diameter (Decimal Inch) |
0.1500 |
| Maximum Depth of Cut (mm) |
1.50 |
| Maximum Depth of Cut (Decimal Inch) |
0.0590 |
| Insert Holding Method |
Clamp, Pin |
| Width (Inch) |
3/8in |
| Clearance Code |
N |
| Tolerance Code |
M |
| Coating Process |
CVD |
| Length Range (Decimal Inch) |
0.4000 – 0.5000 |
| Rake |
Negative |
| Insert Length (mm) |
11.61 |
| Insert Length (Decimal Inch) |
0.4580 |
| Primary Workpiece Material |
Steel |
| Primary Workpiece Material Code |
P |
| Secondary Workpiece Material |
Cast Iron |
| Secondary Workpiece Material Code |
K |
| Iso Code |
DNMG110404-FP5 WPP10S |
| Standards |
ANSI, ISO |
| Manufacturers Catalog Number |
6059974 |
| Material Grade |
P10, K20 |
| Proprietary Coating Designation |
WPP10S |
| Lead Angle |
55degree |
| Coating Classification |
CVD |
| Chip Breaker |
FP5 |
| Rake Angle |
16 |
| Cutting Edge Style |
Chamfered & Honed |
| Industry Standard Number |
DNMG331-FP5 WPP10S |
| Width (Decimal Inch – 4 Decimals) |
0.3750in |
| Multi-Use Tool |
Yes |
| Full Radius |
No |
| Multi-Use Application |
Turning, Facing, Boring, Back Turning |
| UNSPSC Code |
23242105 |
| Insert Size Code |
331 |
