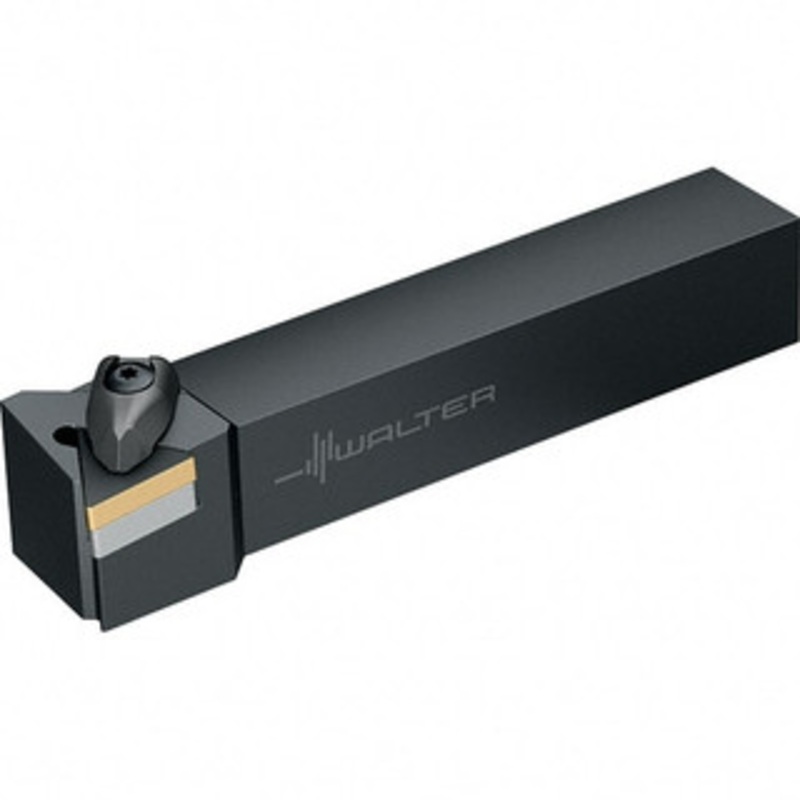

Walter Tools LH DTJN Negative Rake Indexable Turning Toolholder 1 x 1 Shank, Takes TN..2204.., TN..43.. Inserts 5097504 – 53059648

Walter Tools LH DTJN Negative Rake Indexable Turning Toolholder 1 x 1 Shank, Takes TN..2204.., TN..43.. Inserts 5097504 – 53059648

  • $102.35
  • $204.70
Availability: In Stock

Walter Tools LH DTJN Negative Rake Indexable Turning Toolholder 1" x 1" Shank, Takes TN..2204.., TN..43.. InsertsManufacturer Part #: 5097504S/N: 53059648UNSPSC: 23153308(Minimum Order Quantity=1, Package Quantity=1)Specifications:Toolholder StyleDTJNHand

Category:
Share:
payment
Description Reviews (0)

Walter Tools LH DTJN Negative Rake Indexable Turning Toolholder 1″ x 1″ Shank, Takes TN..2204.., TN..43.. Inserts

Manufacturer Part #: 5097504

S/N: 53059648

UNSPSC: 23153308

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Toolholder Style DTJN Hand of Holder Left Hand Insert Compatibility TN..2204.., TN..43.. Insert Holding Method Clamp Overall Length (Decimal Inch) 6.0000 Coolant Through No Rake Negative Cutting Direction Left Hand Compatible Insert Size Code TN2204, TN43 Rake Angle -6 Multi-use Tool No Shank Width (Decimal Inch) 1.0000 Shank Height (Decimal Inch) 1.0000 Series Walter Turn Cutting Tool Application Turning Head Length (Decimal Inch) 1.2830 Back of Bar to Cutting Edge (Decimal Inch) 1.2500 Standards ANSI, ISO Insert Inscribed Circle (Decimal Inch) 0.5000 Insert Inscribed Circle (Inch) 1/2 Insert Width (mm) 22.00 Insert Width (Decimal Inch) 0.8660
