Walter Tools LNGX130708R-L88 WK10 Carbide Milling Insert Uncoated, 0.5354 Long x 0.3043 Thick x 0.4331 Wide 5535309 – 75439661

Walter Tools LNGX130708R-L88 WK10 Carbide Milling Insert Uncoated, 0.5354 Long x 0.3043 Thick x 0.4331 Wide 5535309 – 75439661

  • $17.86
  • $29.77
Availability: In Stock

Walter Tools LNGX130708R-L88 WK10 Carbide Milling Insert Uncoated, 0.5354" Long x 0.3043" Thick x 0.4331" WideManufacturer Part #: 5535309S/N: 75439661UNSPSC: 23291601(Minimum Order Quantity=1, Package Quantity=1)Specifications:Insert StyleLNGXInsert Size1

Category:
Share:
payment
Description Reviews (0)

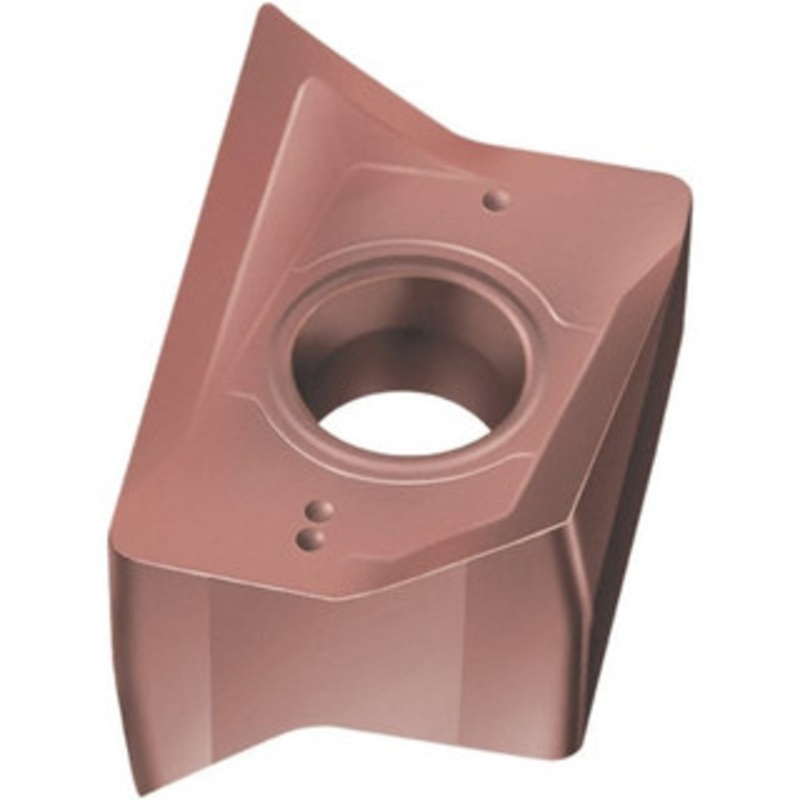

Walter Tools LNGX130708R-L88 WK10 Carbide Milling Insert Uncoated, 0.5354″ Long x 0.3043″ Thick x 0.4331″ Wide

Manufacturer Part #: 5535309

S/N: 75439661

UNSPSC: 23291601

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Insert Style LNGX Insert Size 13 Insert Material Solid Carbide Insert Shape Rectangle Manufacturer Grade WK10 Corner Radius (Decimal Inch) 0.0315 Corner Radius (mm) 0.80 Number Of Cutting Edges 4 Thickness (Decimal Inch – 4 Decimals) 0.3050 Coating/Finish Bright/Uncoated Relief Angle 0.00 Maximum Depth of Cut (Decimal Inch) 0.5390 Insert Size Code 130708 Material Grade N10 Inscribed Circle (Decimal Inch) 0.4330 Thickness Range (Decimal Inch) 0.2500 to 0.3500 Corner Radius (Inch) 1/32 Inscribed Circle Range (Decimal Inch) 0.4000 to 0.5000 Length Range (Decimal Inch) 0.5000 to 0.6000 Insert Hand Right Hand Series LNGX Coating Process Uncoated Rake Negative Primary Workpiece Material Non-Ferrous Metal Primary Workpiece Material Code N Ansi Code LNGX130708R-L88 WK10 Iso Code LNGX130708R-L88 WK10 Standards ANSI, ISO Rake Angle 28 Cutting Edge Style Sharp Manufacturers Catalog Number LNGX130708R-L88 Cutter Series Compatibility F2010, F4041 Chip Breaker L88 Material Application Non-Ferrous Metal UNSPSC Code 23291601 Insert Holding Method Screw Coating Classification Uncoated Single or Double Sided Insert Double Included Angle Degree 90 Width (Decimal Inch – 4 Decimals) 0.4330 Multi-Use Tool Yes Length (Decimal Inch – 4 Decimals) 0.5390
