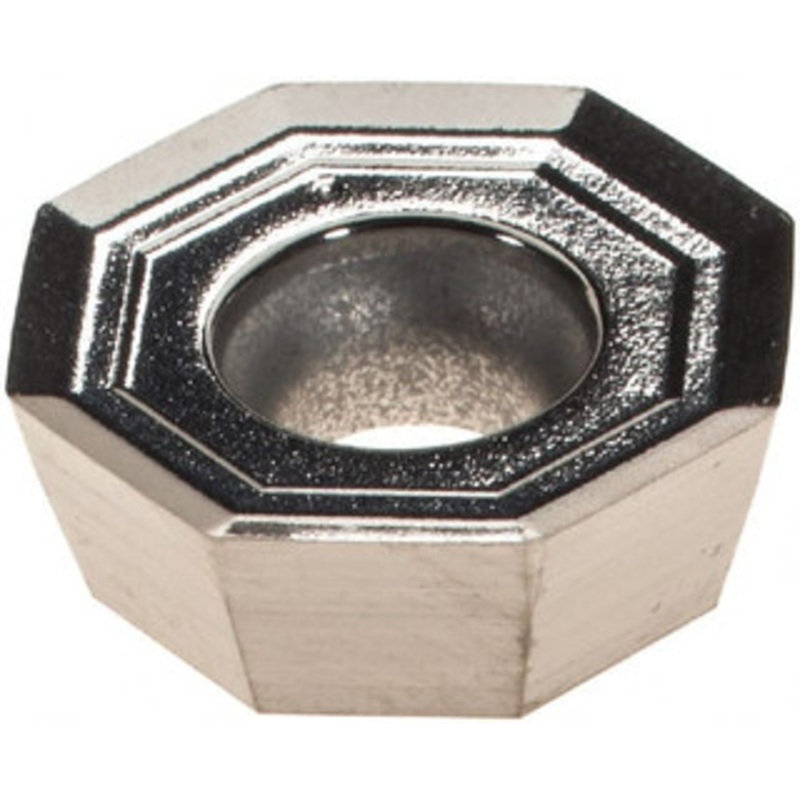

Walter Tools ODHT0605ZZN-G88 WK10 Carbide Milling Insert Uncoated, 0.2362 Long x 0.2189 Thick 5004795 – 75444240

Walter Tools ODHT0605ZZN-G88 WK10 Carbide Milling Insert Uncoated, 0.2362 Long x 0.2189 Thick 5004795 – 75444240

  • $22.50
  • $37.50
Availability: In Stock

Walter Tools ODHT0605ZZN-G88 WK10 Carbide Milling Insert Uncoated, 0.2362" Long x 0.2189" ThickManufacturer Part #: 5004795S/N: 75444240UNSPSC: 23291601(Minimum Order Quantity=1, Package Quantity=1)Specifications:Insert StyleODHTInsert Size06Insert Materia

Category:
Share:
payment
Description Reviews (0)

Walter Tools ODHT0605ZZN-G88 WK10 Carbide Milling Insert Uncoated, 0.2362″ Long x 0.2189″ Thick

Manufacturer Part #: 5004795

S/N: 75444240

UNSPSC: 23291601

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Insert Style ODHT Insert Size 06 Insert Material Solid Carbide Insert Shape Octagon Manufacturer Grade WK10 Corner Radius (Decimal Inch) 0.0315 Corner Radius (mm) 0.80 Number Of Cutting Edges 8 Thickness (Decimal Inch – 4 Decimals) 0.2190 Coating/Finish Bright/Uncoated Relief Angle 15 Maximum Depth of Cut (Decimal Inch) 0.2590 Maximum Depth of Cut (mm) 6.58 Insert Size Code 0605 Material Grade N10 Length (Inch) 5/8 Thickness (Inch) 7/32 Inscribed Circle (Inch) 5/8 Inscribed Circle (Decimal Inch) 0.6252 Thickness Range (Decimal Inch) 0.2000 to 0.2200 Corner Radius (Inch) 1/32 Inscribed Circle Range (Decimal Inch) 0.6000 to 0.7000 Length Range (Decimal Inch) 0.6000 to 0.6500 Insert Hand Neutral Series ODHT Coating Process Uncoated Cutting Edge Effective Length (mm) 6.58 Cutting Edge Effective Length (Decimal Inch) 0.2591 Rake Positive Primary Workpiece Material Non-Ferrous Metal Primary Workpiece Material Code N Ansi Code ODHT0605ZZN-G88 WK10 Iso Code ODHT0605ZZN-G88 WK10 Standards ANSI, ISO Rake Angle 20 Cutting Edge Style Sharp Manufacturers Catalog Number ODHT0605ZZN-G88 Cutter Series Compatibility F2010, M5003 Chip Breaker G88 Material Application Non-Ferrous Metal Insert Holding Method Screw Coating Classification Uncoated Single or Double Sided Insert Single Included Angle Degree 135 Length (mm) 6.58 Width (Decimal Inch – 4 Decimals) 0.2590 Width (mm – 2 Decimals) 6.58 Multi-Use Tool Yes Length (Decimal Inch – 4 Decimals) 0.6252
