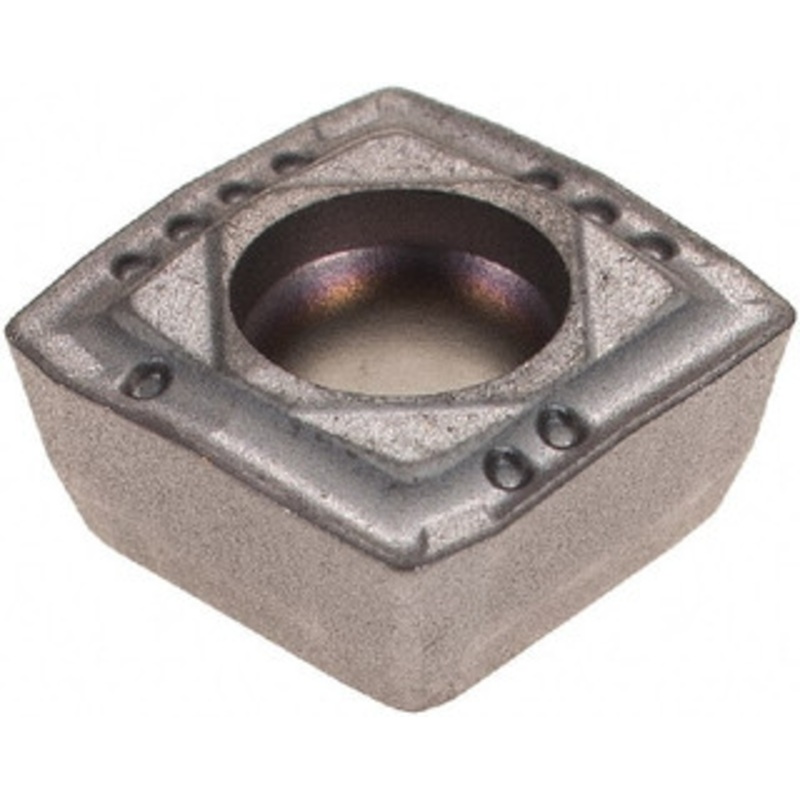

Walter Tools P4841C-3R-E57 WXP40 Carbide Indexable Drill Insert TiCN Finish, 7mm Inscribed Circle, 2.8mm Thick, 0.4mm Corner Radius, RH Cut, Square 6154556 – 36289478

Walter Tools P4841C-3R-E57 WXP40 Carbide Indexable Drill Insert TiCN Finish, 7mm Inscribed Circle, 2.8mm Thick, 0.4mm Corner Radius, RH Cut, Square 6154556 – 36289478

  • $15.36
  • $25.60
Availability: In Stock

Walter Tools P4841C-3R-E57 WXP40 Carbide Indexable Drill Insert TiCN Finish, 7mm Inscribed Circle, 2.8mm Thick, 0.4mm Corner Radius, RH Cut, SquareManufacturer Part #: 6154556S/N: 36289478UNSPSC: 23242105(Minimum Order Quantity=10, Package Quantity=1)(Plea

Category:
Share:
payment
Description Reviews (0)

Walter Tools P4841C-3R-E57 WXP40 Carbide Indexable Drill Insert TiCN Finish, 7mm Inscribed Circle, 2.8mm Thick, 0.4mm Corner Radius, RH Cut, Square

Manufacturer Part #: 6154556

S/N: 36289478

UNSPSC: 23242105

(Minimum Order Quantity=10, Package Quantity=1)

(Please order in multiples of 10)

Specifications:

Insert Style P484 Insert Material Solid Carbide Manufacturer Grade WXP40 Inscribed Circle (Decimal Inch) 0.2756 Inscribed Circle (mm) 7.00 Cutting Direction Right Hand Corner Radius (Decimal Inch) 0.0157 Corner Radius (mm) 0.40 Chipbreaker E57 Series Tiger Tec Material Grade P40, M30, S30 Coating Process PVD Shape Square Number Of Cutting Edges 4 Primary Workpiece Material Stainless Steel, Steel Primary Workpiece Material Code M, P Iso Code P4841C-3R-E57 WXP40 Standards ANSI, ISO Insert Size 3 Width (mm – 2 Decimals) 7.00 Width (Decimal Inch – 4 Decimals) 0.2800 Length (Decimal Inch – 4 Decimals) 0.2800 Included Angle Degree 90 Thickness (Decimal Inch – 4 Decimals) 0.1102 Coating/Finish Coated Insert Size Code 48
