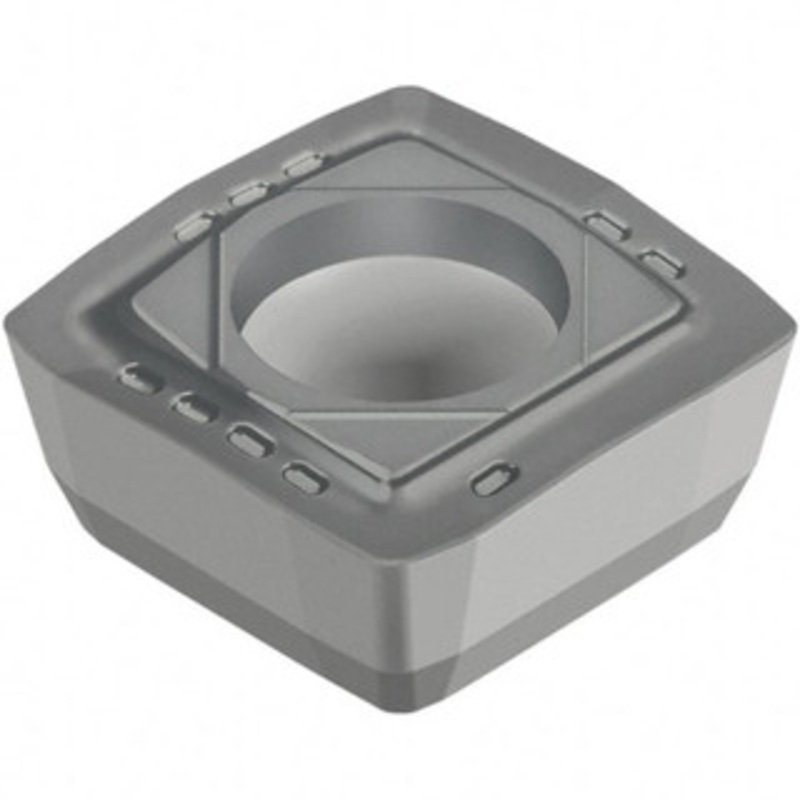

Walter Tools P4841C-6R-A57 WXP40 Carbide Indexable Drill Insert TiCN Finish, 12.24mm Inscribed Circle, 4.88mm Thick, 0.71mm Corner Radius, RH Cut, Square 6154485 – 73503625

Walter Tools P4841C-6R-A57 WXP40 Carbide Indexable Drill Insert TiCN Finish, 12.24mm Inscribed Circle, 4.88mm Thick, 0.71mm Corner Radius, RH Cut, Square 6154485 – 73503625

  • $18.16
  • $30.27
Availability: In Stock

Walter Tools P4841C-6R-A57 WXP40 Carbide Indexable Drill Insert TiCN Finish, 12.24mm Inscribed Circle, 4.88mm Thick, 0.71mm Corner Radius, RH Cut, SquareManufacturer Part #: 6154485S/N: 73503625UNSPSC: 23242105(Minimum Order Quantity=5, Package Quantity=1)

Category:
Share:
payment
Description Reviews (0)

Walter Tools P4841C-6R-A57 WXP40 Carbide Indexable Drill Insert TiCN Finish, 12.24mm Inscribed Circle, 4.88mm Thick, 0.71mm Corner Radius, RH Cut, Square

Manufacturer Part #: 6154485

S/N: 73503625

UNSPSC: 23242105

(Minimum Order Quantity=5, Package Quantity=1)

(Please order in multiples of 5)

Specifications:

Insert Style P484 Insert Material Solid Carbide Manufacturer Grade WXP40 Inscribed Circle (Decimal Inch) 0.4820 Inscribed Circle (mm) 12.24 Cutting Direction Right Hand Corner Radius (Decimal Inch) 0.0280 Corner Radius (mm) 0.71 Chipbreaker A57 Series Tiger Tec Material Grade P40, M30, S30 Coating Process PVD Shape Square Number Of Cutting Edges 4 Primary Workpiece Material Stainless Steel, Steel Primary Workpiece Material Code M, P Iso Code P4841C-6R-A57 WXP40 Standards ANSI, ISO Insert Size 6 Width (mm – 2 Decimals) 12.24 Width (Decimal Inch – 4 Decimals) 0.4800 Length (Decimal Inch – 4 Decimals) 0.4800 Included Angle Degree 90 Thickness (Decimal Inch – 4 Decimals) 0.1920 Coating/Finish Coated Insert Size Code 48
