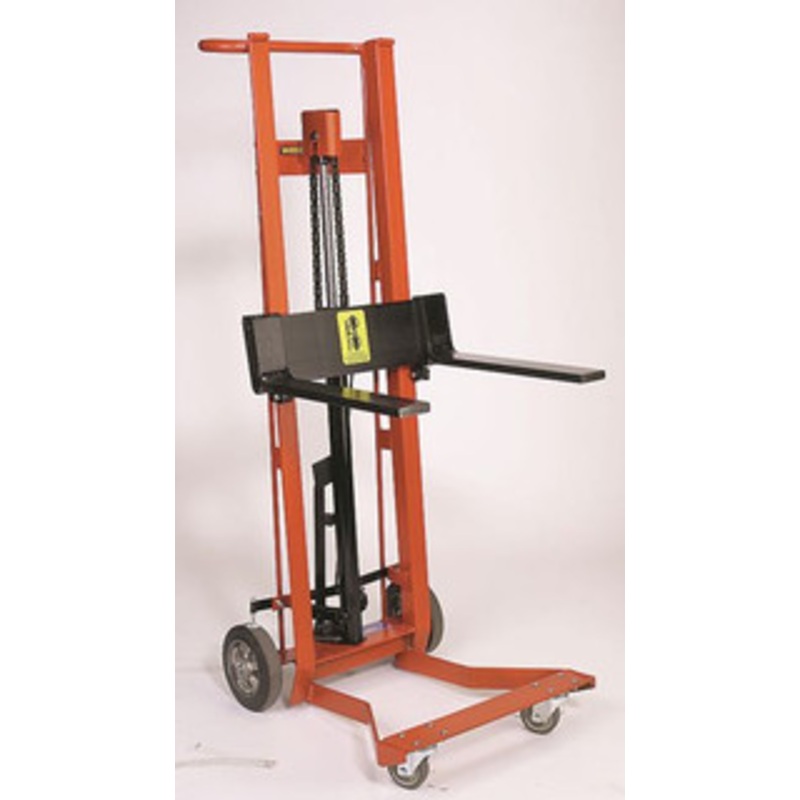

Wesco Four Wheeled Hydraulic Pedalifts

• 750 lb lift capacity
• Wheel locks are standard on all models
• Frame and lift heights vary among models
• 1-year warranty
• Wesco manufactured hydraulic Pedalift Jack, over 35 year of proven quality
• Foot operated hydraulic pump raises platform, foot release lowers platform
• Platform sits 5.75″ above the floor
• Wheel lock standard
• All 54″ lifts are 60.5″ O.A.H
• All 40″ lifts are 48.5″ O.A.H.
• 8″x2″ wheels with .75″ precision ball bearings
• 3.5″ diameter polyurethane ball bearing front swivel casters
• Adjustable forks

Specifications:

Part Number 260008 260009 260010 260011 260012 Model DPL-40-1620 DPL-54-2222 DPL-54-2230 DPL-40-F DPL-54-F Capacity 750 lb 750 lb 750 lb 750 lb 750 lb Wheel (2) 8″ x 2″ (2) 8″ x 2″ (2) 8″ x 2″ (2) 8″ x 2″ (2) 8″ x 2″ Swivel Caster (2) 3.5″
Polyurethane (2) 3.5″
Polyurethane (2) 3.5″
Polyurethane (2) 3.5″
Polyurethane (2) 3.5″
Polyurethane Lift Height 40″ 54″ 54″ 40″ 54″ Platform Width 20″ 22″ 30″ 3″ 3″ Platform Length 16″ 22″ 22″ 18″ 18″ Load Center 10″ 10″ 15″ 10″ 10″ O.A.H. 48.5″ 60.5″ 60.5″ 48.5″ 60.5″ Overall Width 22.5″ 22.5″ 30″ 22.5″ 22.5″ Overall Height 48.5″ 60.5″ 60.5″ 48.5″ 60.5″ Overall Depth 32″ 32″ 32″ 32″ 32″ Weight 119 lb 166 lb 172 lb 138 lb 172 lb Drawing 260008
Drawing 260009
Drawing 260010
Drawing 260011
Drawing 260012
Drawing

Stainless Steel:

Part Number 260186 260197 Model SSDPL-54-2222 SSDPL-54-F Capacity 750 lb 750 lb Wheel (2) 8″ x 2″ (2) 8″ x 2″ Swivel Caster (2) 3.5″ Hard Rubber (2) 3.5″ Hard Rubber Lift Height 54″ 54″ Width Forks 22″ 3″ Length Forks 22″ 18″ Load Center 10″ 10″ O.A.H. 48″ 48″ Overall Width 22.5″ 22.5″ Overall Height 60.5″ 60.5″ Overall Depth 32″ 32″ Weight 175 lb 181 lb Construction 304 Stainless Steel 304 Stainless Steel Warranty 1 year 1 year Drawing 260186 Drawing 260197 Drawing
