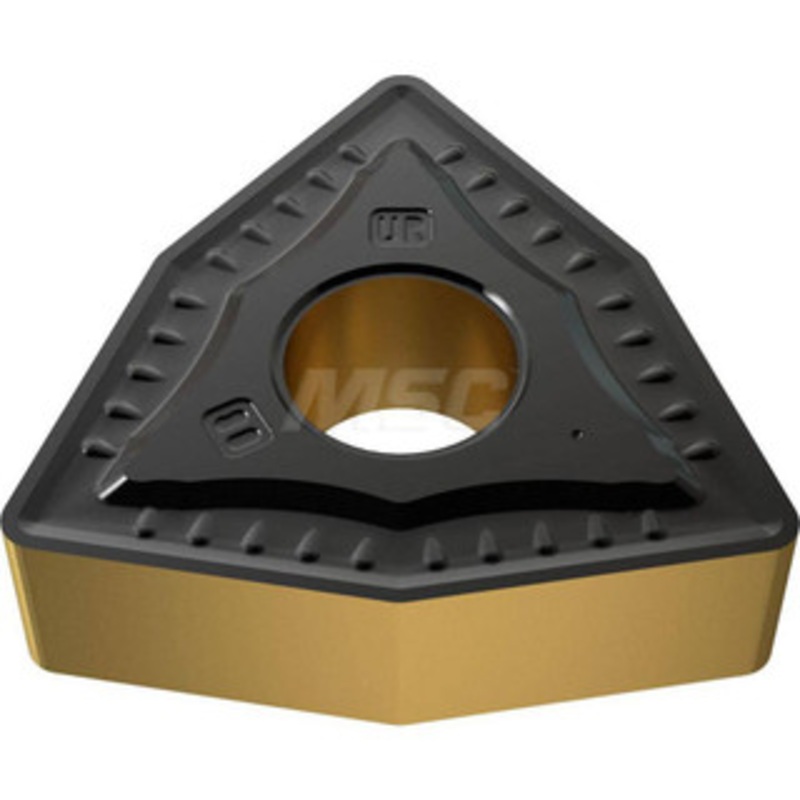

YG-1 Turning Inserts, Insert Style: WNMG, Insert Size: 080408, Material: Carbide, Width (Inch): 1/2, Length (mm): 0.307, Inscribed Circle (Inch): 1/2 22000471 – 12224770

YG-1 Turning Inserts, Insert Style: WNMG, Insert Size: 080408, Material: Carbide, Width (Inch): 1/2, Length (mm): 0.307, Inscribed Circle (Inch): 1/2 22000471 – 12224770

  • $12.06
  • $20.10
Availability: In Stock

YG-1 Turning Inserts, Insert Style: WNMG, Insert Size: 080408, Material: Carbide, Width (Inch): 1/2, Length (mm): 0.307, Inscribed Circle (Inch): 1/2Manufacturer Part #: 22000471S/N: 12224770UNSPSC: 23242105(Minimum Order Quantity=1, Package Quantity=1)Spe

Category:
Share:
payment
Description Reviews (0)

YG-1 Turning Inserts, Insert Style: WNMG, Insert Size: 080408, Material: Carbide, Width (Inch): 1/2, Length (mm): 0.307, Inscribed Circle (Inch): 1/2

Manufacturer Part #: 22000471

S/N: 12224770

UNSPSC: 23242105

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Insert Style WNMG Corner Radius (Inch) 1/32 Corner Radius (Decimal Inch) 0.0312 Included Angle 80degree Manufacturer Grade YG3020 Coating/Finish Al2O3, TiCN Wiper Edge No Insert Hand Neutral Insert Thickness (Inch) 3/16 Insert Thickness (Decimal Inch) 0.1875 Series WNMG Inscribed Circle (Inch) 1/2 Inscribed Circle (Decimal Inch) 0.5000 Insert Material Carbide Insert Shape Trigon Number Of Cutting Edges 6 Insert Shape Code W Maximum Depth of Cut (Decimal Inch) 0.1180 Insert Holding Method Clamp, Pin Width (Inch) 1/2 Clearance Code N Tolerance Code M Coating Process CVD Length Range (Decimal Inch) 0.6500 – 0.7000 Rake Negative Insert Length (mm) 0.31 Insert Length (Decimal Inch) 0.6860 Primary Workpiece Material Steel Primary Workpiece Material Code P Iso Code WNMG080408UR Standards ANSI, ISO Manufacturers Catalog Number 22000471 Material Grade P15, P30 Proprietary Coating Designation Multilayer Coating Coating Classification CVD Chip Breaker UR Rake Angle -17 Cutting Edge Style Chamfered & Honed Industry Standard Number WNMG432UR Width (Decimal Inch – 4 Decimals) 0.6860in Multi-Use Tool No Full Radius No Multi-Use Application Turning, Facing, Boring UNSPSC Code 23242105 Insert Size Code 432
