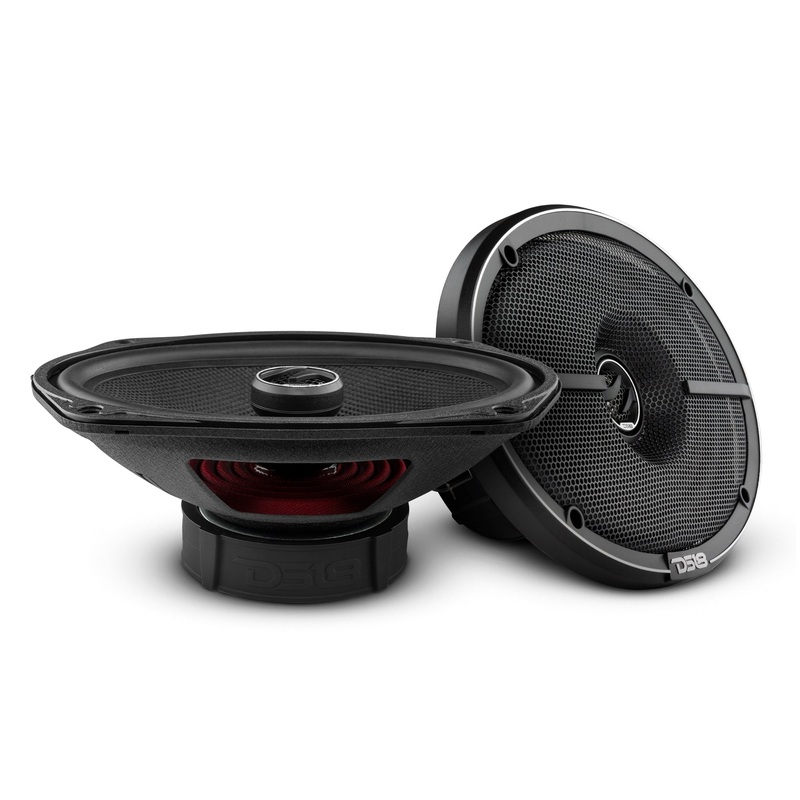

ZXI 6×9″ 2-Way Coaxial Speakers with Kevlar Cone 120 Watts Rms 4-Ohm

  • $71.98
  • $143.95
Availability: In Stock

DS18 ZXI-694Glass Fiber Cone 6x9" 2-Way Coaxial Car Speaker 360 Watts 4-OhmThe ZXI series is the go to DS18 line for great sounding audio that not only has very high volume, but also amazing sound quality for an amazing price. The ZXI-694 is a 6x9", 4 ohm


Share:
payment

DS18 ZXI-694Glass Fiber Cone 6×9″ 2-Way Coaxial Car Speaker 360 Watts 4-Ohm

The ZXI series is the go to DS18 line for great sounding audio that not only has very high volume, but also amazing sound quality for an amazing price. The ZXI-694 is a 6×9″, 4 ohm coaxial speaker designed for mid tier audio enthusiasts to the extreme as they have an amazing range of frequencies and loudness. The 2-way design will ensure that you receive a full range of frequencies for an audio experience that you will truly remember.

Highlights

  • The ZXi line is a complete line of amps, subs, mids, and tweeters so you can match all your equipment up to be the same for an amazing show quality look.
  • 6×9″ inch 2 way 4 ohm speaker requiring 120w RMS and 360w max power handling that gives amazing sound from low to extremely high volume.
  • 2-way design will be sure to give you a full range of frequencies for an amazing audio experience to remember.
Technical Details

ZXI-694 Product Manual

SPECIFICATIONS
Nominal Diameter 6X9 / 162*235mm
Nominal Impedance 4 ohm
RMS Power Handing 120W
MAX Power Handing 360W
Sensitivity (1w/1m) 92dB
Frequency Response 31.5Hz-20KHz
Recommended HI Pass Crossover 50Hz
Number of ways 2-Way
MIDRANGE
Voice Coil Diameter 1.2 / 30.4mm
Voice Coil Former Material KSV
Winding Material EISV
Cone Material Glass fiber
Surround Material Rubber
Basket Material Steel
Magnet Material Barium Ferrite
Magnet Weight 550g
TWEETER
Nominal Diameter 1″ (25.4mm)
Voice Coil Diameter 0.8″(20.4mm)
Voice Coil Former Material KSV
Winding Material EISVM
Diaphragm Material PEI
Magnet Material Neodymium
Magnet Weight 8.5g
MEASUREMENT
Overall Diameter 6.37×9.25 /162*235mm
Overall Depth 3.66 / 93mm
Front Mount Baffle Cutout 5.94×8.70 / 151*221mm
Mouting Depth 3.22 / 82mm
Motor Diameter 4.09 / 104mm
