Description:

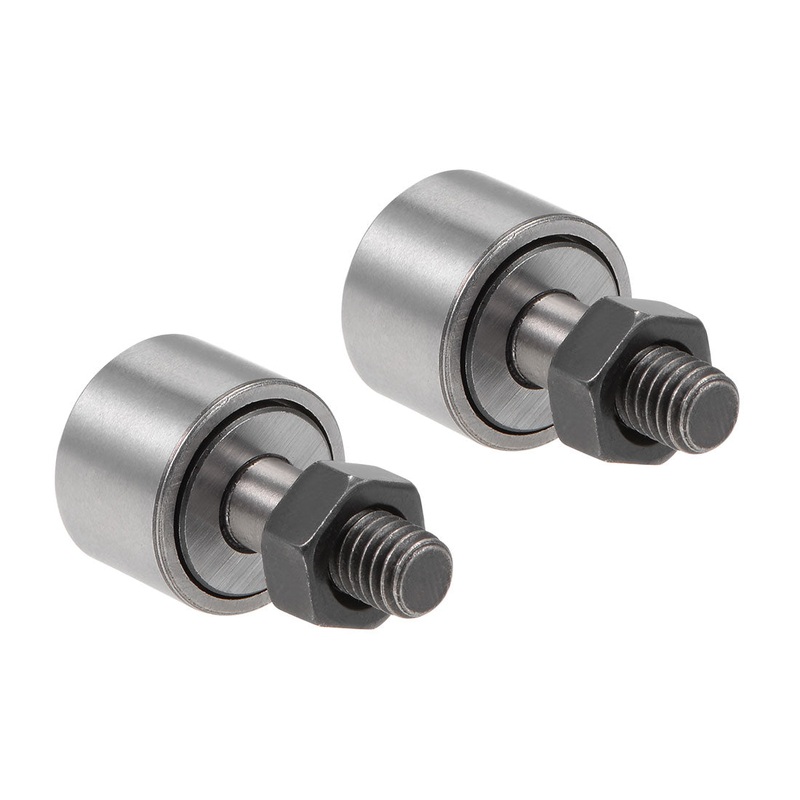

–Acam follower, also known as atrack follower, is a specialized type of roller or needle bearing designed to follow cam lobe profiles.

-The thick-walled outer ring enables high radial loads, while reducing distortion and bending stresses.

-The stud type follower replaced using a standard bearing and bolt. They are easier to use and could also handle higher loads.

–Cam followers bearings have high rigidity and accuracy as follower bearings for the cam mechanism and straight line movement, and they are used in a broad range of fields such as machine tools, industrial robots, electronic parts machinery.

–Cam followers are used as a guide roller for cam mechanisms or linear motion.

Specification:

• Model: CF6 (KR16)
• Bearing Material: GCr15 Steel
• Cage Material: Mild Steel
• Roller Diameter: 16mm
• Roller Width: 11mm
• Stud Diameter: 6mm
• Stud Length: 16mm
• Thread Size: M6x1.0mm
• Thread Length: 8mm
• Overall Length (Max.): 28.2mm
• Dynamic Load Rating (Cr): 0.27kN
• Static Load Rating (Cor): 0.17kN
• Limited Speed: 25000 rpm
